What's in the box

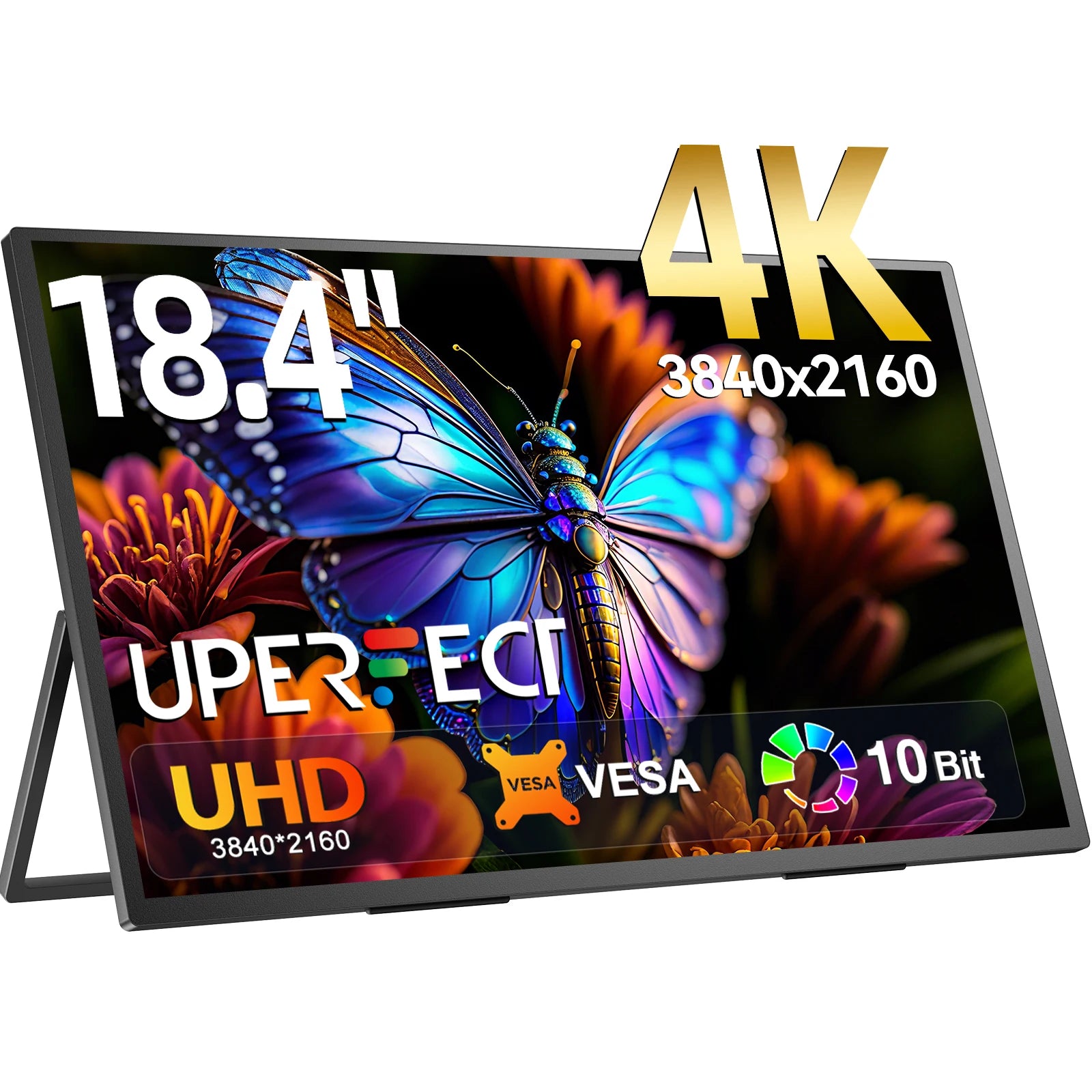

1x18.4 inch 4K Portable Monitor
1xManual
2xUSB C-C Cable
1xPD Power Adapter
1xMini HDMI to HDMI Cable

Specifications

Series: UXbox

Model: T118

Refresh Rate: 60Hz

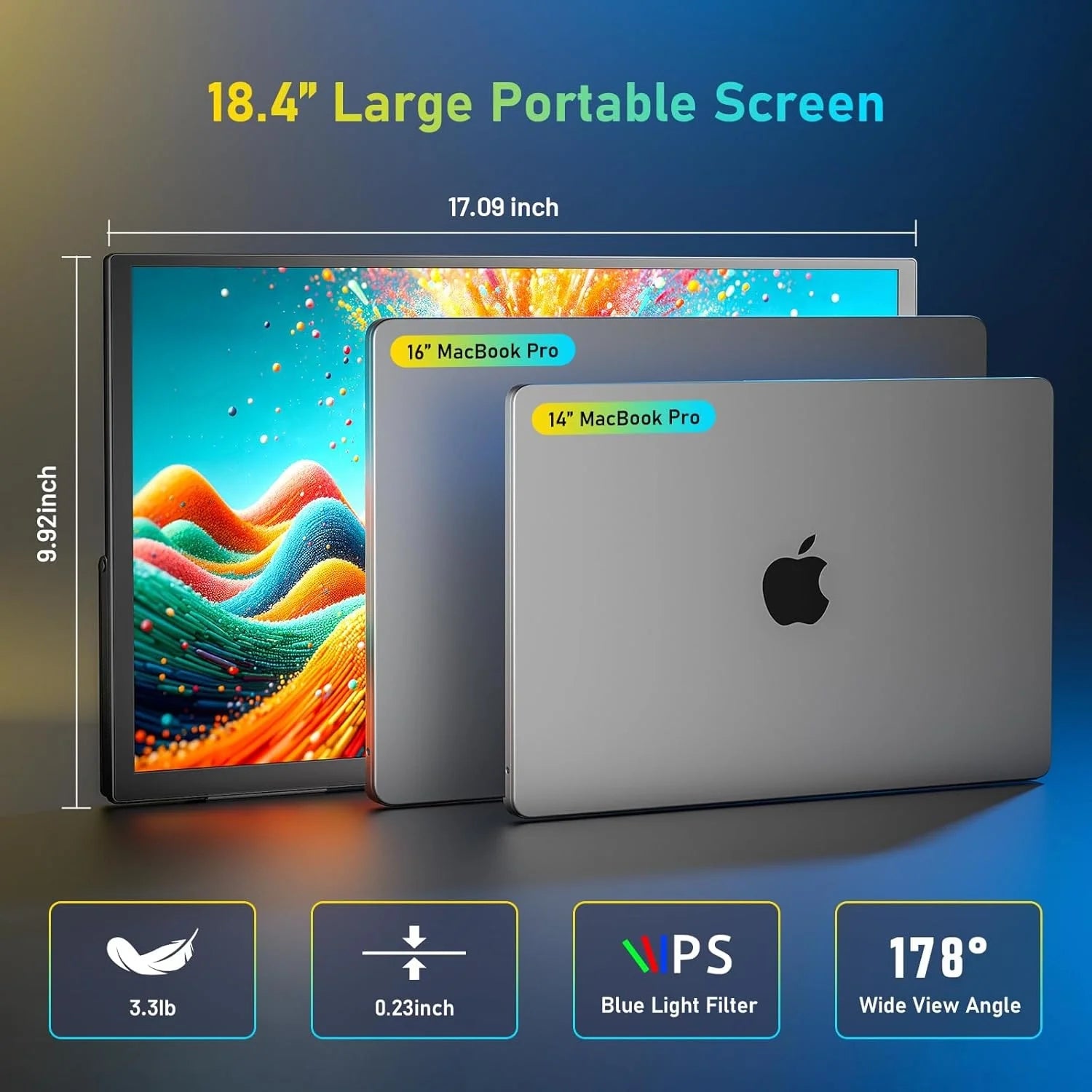

Screen Size: 18.4 inch

Resolution: 3840 × 2160 (4K)

Display Ratio: 16:9

Viewing Angle: 178°

Panel Type: IPS

Contrast Ratio: 1000:1

Brightness: 300 cd/m²

Color Gamut: 100% sRGB

Color Depth: 1.07B(10Bit)

Rated Power: 14W

Material: Aluminum Alloy

Touch Screen: No

Auto Rotation: No

Built-in Battery: No

HDR: Yes

FreeSync: Yes

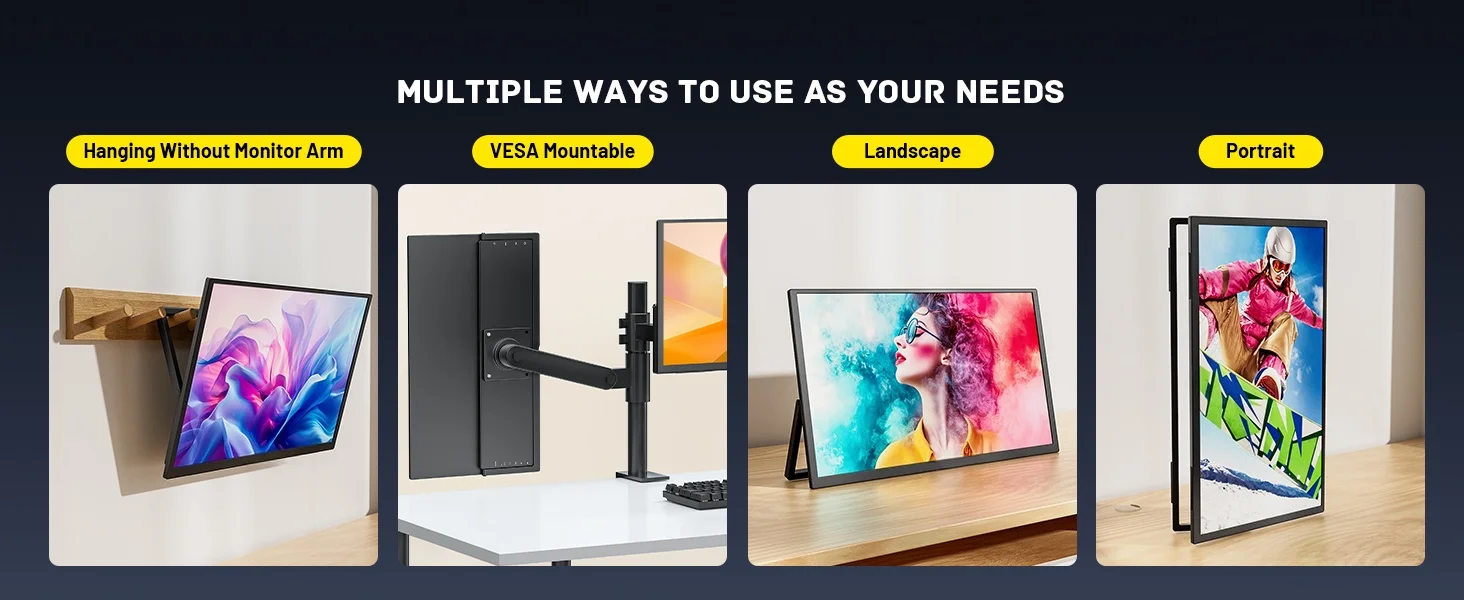

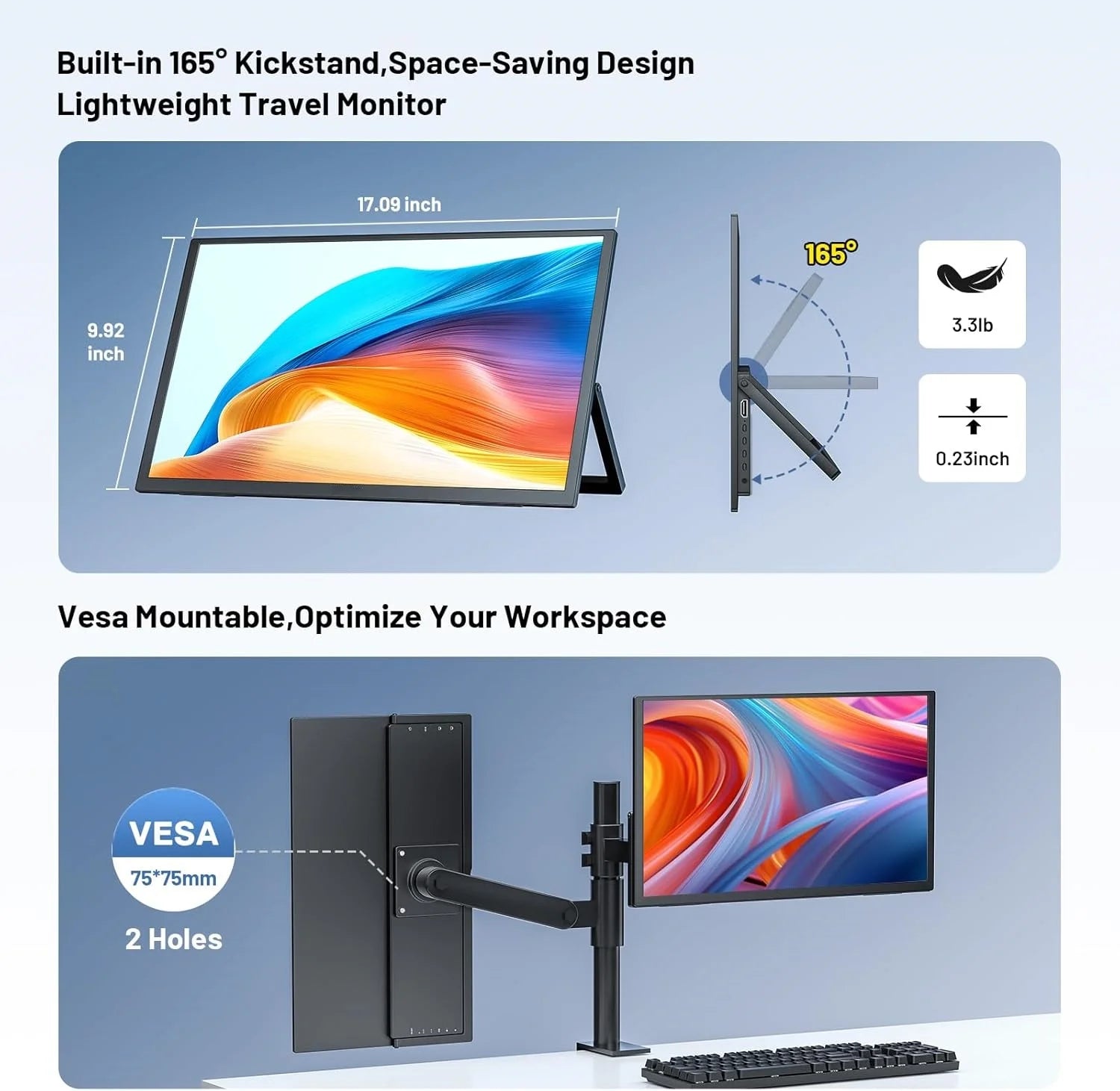

Vesa: Yes, 75*75mm@M4*4mm

Built-in Speaker: Yes, 2*8Ω 1W

Product Size: 430 × 263 × 15 mm (16.93 × 10.35 × 0.59 inch)

Net Weight: 1.53 kg (3.38 lbs)

Interface

2 × Full-Featured USB Type-C for Audio & Video Input
1 × mini HDMI for Audio & Video Input
1 × 3.5mm AUX for Audio Output

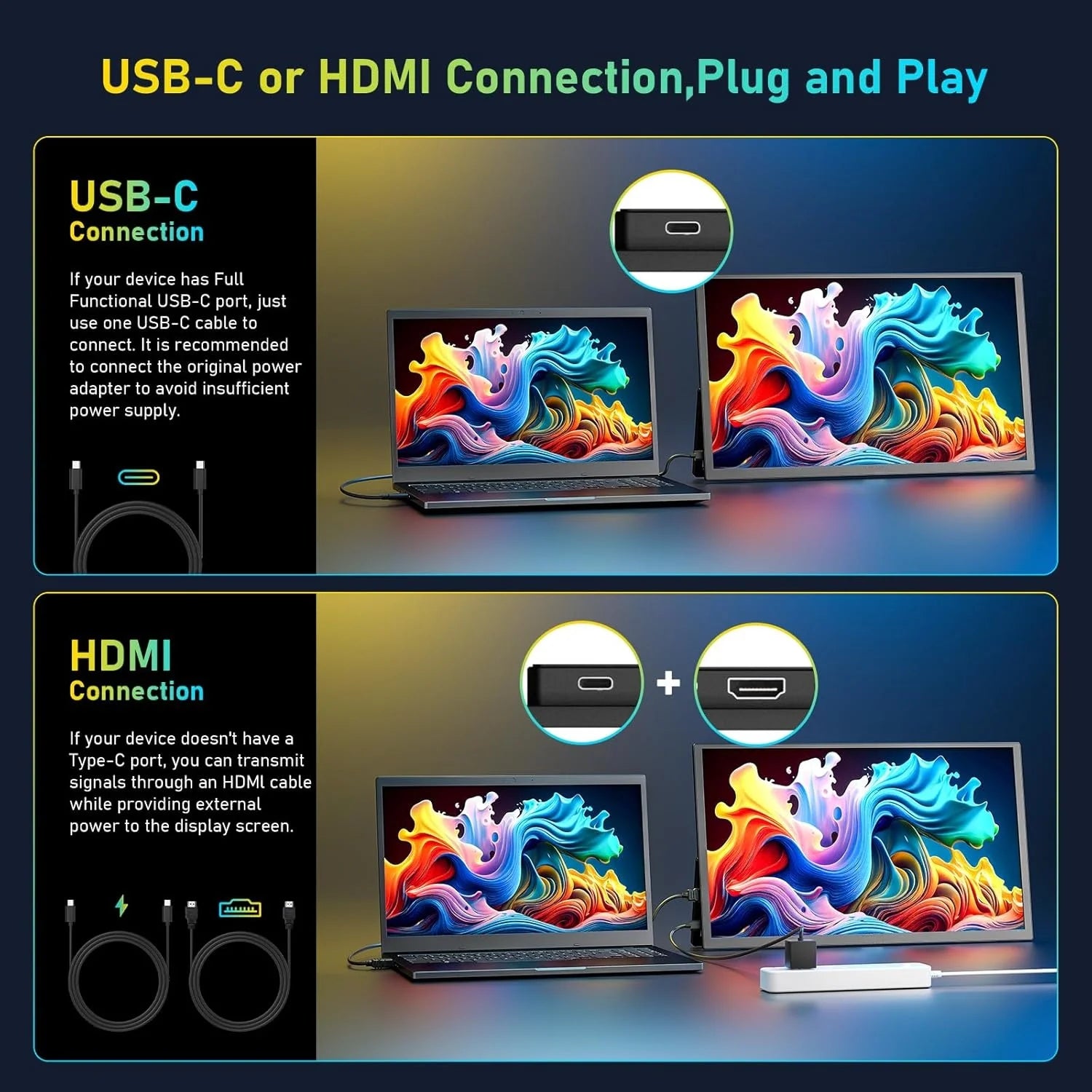

Support Single Type-C Cable For Display & Power Device Model

- Mobile Phones Support USB 3.1:

For Samsung: Samsung Galaxy S8, S8+, S9, S9+, S10, S10+, S10e,S20,S20+,S20 Ultra,S21,S21+,S21 Ultra,S22,S22+,S22 Ultra, Note 8, Note 9，Note 10

For Huawei: P50 Pocket/40 Pro/40/30/20/10/9 Series, Mate X/Xs/X2/40 Pro/40/30/20/10/9 Series, Honor Note 10,Honor Magic V/3/Pro/Pro+/4/4 Pro/4 Ultimate;

For SONY: Xperia 1 / 1 II/1 III/1 IV/5/5 II/5 III/10 III/Pro/Pro-I;

For OnePlus: 7/7 Pro/8/8 Pro/9/9R/9 Pro;

For OPPO: Find X3 Pro/Reno 10x Zoom/Reno 5G/R17 Pro (OPPO RX17 Pro in Europe);

For LG: V60/V50/V40/V35/V30/V30+/V20 Series,G8/G7/G6/G6+(with Dec 2018 update)*functionality has not been tested*/G5 Series,Q8;

For HTC: 10/U Ultra/U11/U11+/U12+/U19e,Exodus 1;

For ASUS:ROG Phone/Phone II/Phone 3/Phone 5/Phone 5s Series,ZenFone 3 Ultra,ZenFone AR,ZenFone Ares;

For Motorola: Edge+/Edge S (China variant)/Moto G100 (global version for European market)/ Edge 20 Pro/30 Pro(global variant)/X30;

For Xiaomi: Black Shark 2/3/4;

For ZTE: Axon 9 Pro/10 Pro,Nubia Red Magic 6S Pro/7/7 Pro;

Others: BlackBerry Key2,BQ Aquaris X2,Essential Phone,Fairphone 4,Lenovo Legion Phone Duel/2 Pro/Duel 2,NOKIA 9 PureView, Microsoft Lumia 950/950 XL, HP Elite x3,Razer Phone/Phone 2,Fairphone 4;

*NOTE: If you can not find your devices above, please use IOS/Android to HDMI Adapter for connecting.

- Laptops Support Thunderbolt 3 or USB 3.1:

For Apple: Apple MacBook Pro (Late 2016) and newer,Apple MacBook Air (Late 2018) and newer ;

For Huawei: MateBook D/X/X Pro/E/13, MagicBook;

For ASUS: ZenBook, U4100UN, U5100UQ, ROG Series;

For HP: EliteBook Folio G1, Spectre 13,ZbookZbook Studio;

For Dell: G3/G5/G7 Series, Inspiron 5000/7000 Series, XPS12/13/15;

For Lenovo: Thinkpad E580/T470/T470s/T480/T480s/X1 Carbon (2017-2019);

For MIUI: Air 12.5"/133.3", Pro 15.6", MI Game NoteBook

For Google: ChromeBook Pixels

For Razer: Blade Stealth Series (All)

For Microsoft: Surface Book 2

Others: Acer Swift 5,MSI GS60 6QE,Gigabyte Aero 15x/15 x9/15 y9;

*NOTE: If you can not find your devices above, please use mini HDMI cable instead.

Q: Abnormal conditions occurred - like the splash screen or spots when usingthe monitor.

A: 1. It is caused by an insufficient power supply.Monitor required large power support.Please use the attached genuine cable provided to power the monitor.

2.lf use the mobile power bank to power the monitor, please confirm whether the mobilepower bank is a PD power bank that has reached 30W or more.Please contact us if youneed a power bank.

3.If the resolutions above do not work, please try another computer device.lf it failed,please contact us for the replacement of the cable.

Q: The monitor fails to start and the screen is blank.

A: 1.Please TURN ON the power supply.

2.Please check whether the connection is correct.Please unplug the cable and reconnect.Please use the genuine cable and the power adapter.
Note: Most Samsung mobile phones can not power for the monitor, please power themonitor with an additional power adapter.

3.Please contact us if the troubleshooting above does not help.

Q::The display is TURN-ON, shows "NO SIGNAL" or "POWER SAVING".

A: 1.Please check if the mobile phone supports USB3.1./ Thunderbolt 3. when you areusing Type-C to Type-C to connect the monitor and the mobile phone.An HDMl adapter isrequired to transfer the signal if your mobile phone does not support USB3.1./Thunderbolt3.

2.Please check whether the connection is correct.Please use the genuine cable provided.3.Please try another computer.lf it failed, please contact us for the replacement of thecable.

Q: The monitor is constantly restarting.

A: 1.lt is caused by an insufficient power supply.Monitor required large power support.Please use the attached genuine cable provided to power the monitor.

2. If use the mobile power bank to power the monitor, please confirm whether the mobilepower bank is a PD power bank that has reached 30W or more.Please contact us if youneed a power bank.

3. lf the resolutions above do not work, please try another computer device. If it failed,please contact us for the replacement of the cable.

lmportant Tips:

lf you find any issues with your monitor, please contact our after sales-services and show us problem before returning it. We will help you solve your problems and try our best to makeyou satisfied.We take full responsibility for our products.
lf there are any defects that cannot be solved, we will refund or send you a replacement.
